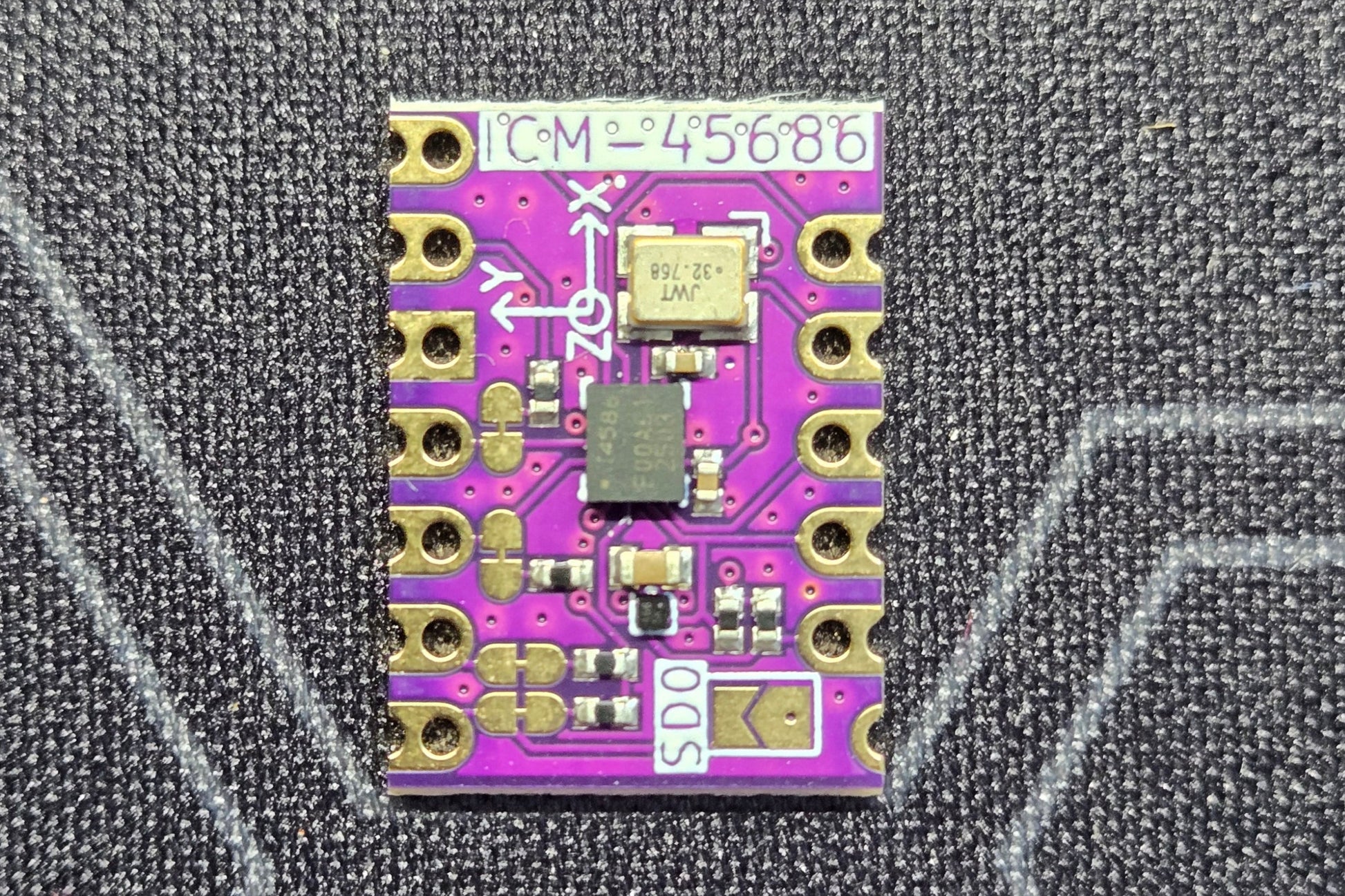

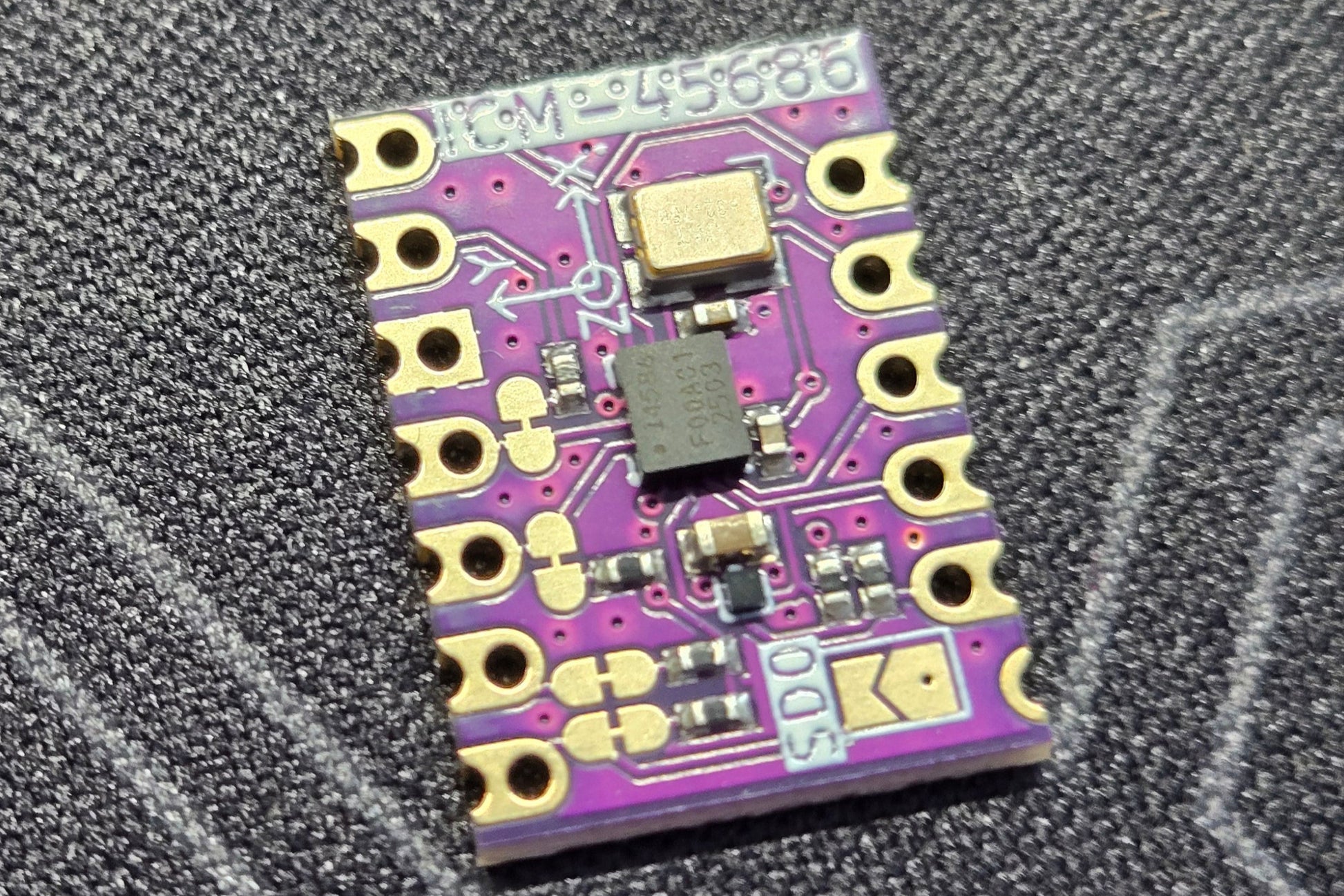

SlimeVR Mumo Breakout Module V1 (ICM-45686 + QMC6309)

IMU Module with ICM-45686 and QMC6309.

Made for SlimeVR trackers, but can be used with any product that fits the form-factor, made to match widely used IMU-module format sold on Aliexpress and other stores. It's the same form-factor as Meia's old modules, fully compatible with other SlimeVR designs that used this module!

PCB thickness is 1.2mm, not usual 1.6mm. Has castellated edges for easier soldering. Pin header is not included.

Useful links:

• Schematic
• 3D Model (step file)
